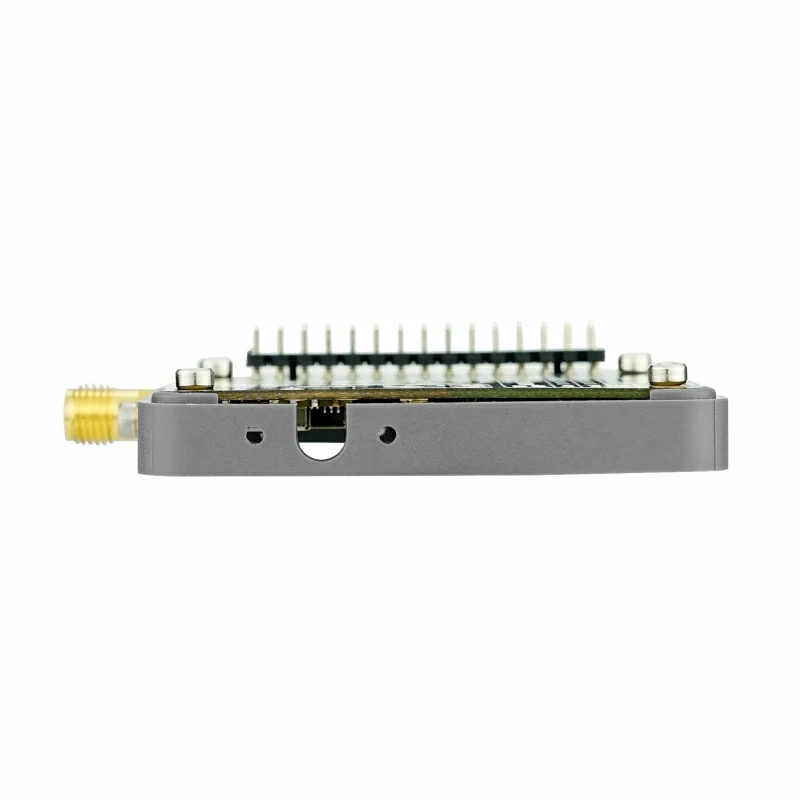

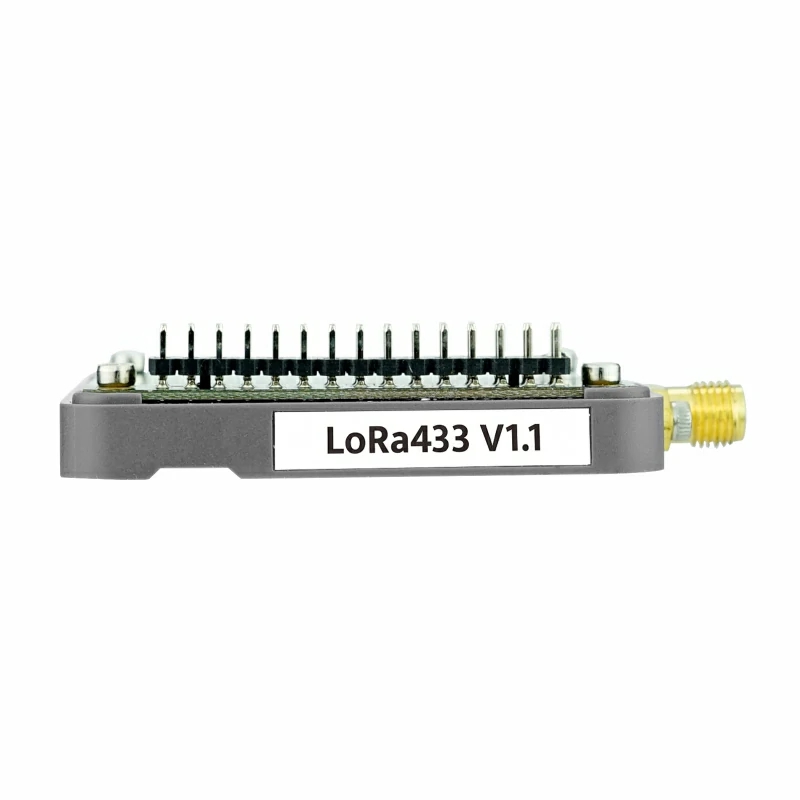

M5Stack LoRa Module (433MHz)

---

Product Link

M5Stack LoRa Module (433MHz) v1.1OpenELAB Technology Ltd.

Description

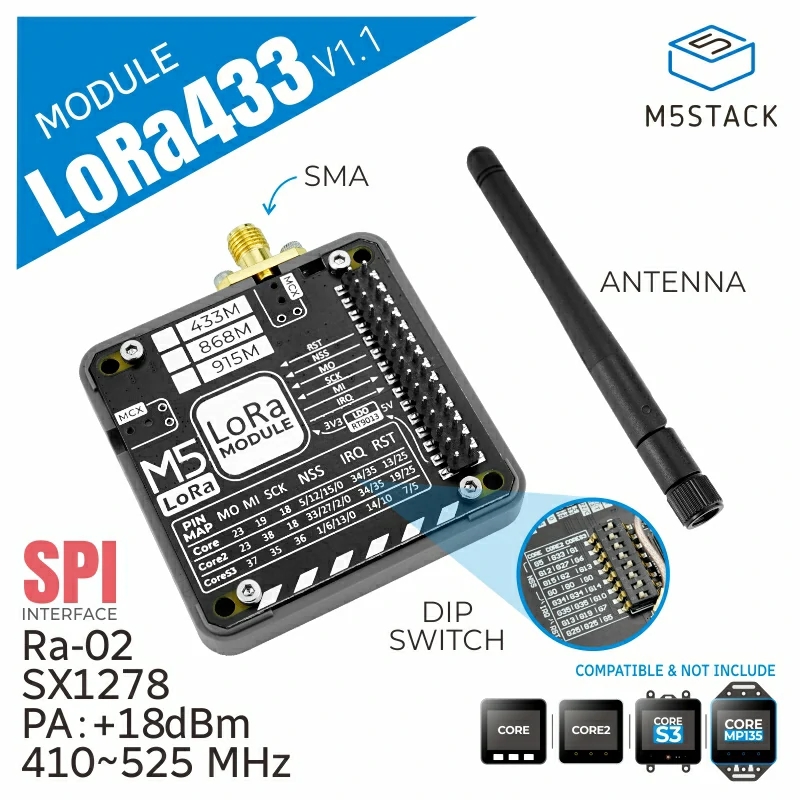

The LoRa433_V1.1 Module is a part of the M5Stack stackable module series and is a LoRa communication module operating at a frequency of 433MHz, utilizing the Ra-02 module (SX1278 chip) solution. This module comes with a default external SMA antenna and also features two additional patch MCX pad interfaces, allowing users to switch between different types of antennas based on their needs. Additionally, the module is equipped with a dip switch, enabling users to easily switch between different communication pins. It supports multiple stackable uses simultaneously, offering more customization and flexibility. It is suitable for remote monitoring, smart cities, home and industrial automation, IoT devices, and more.

Features

• Serial communication protocol: SPI

• Operating frequency:410MHz~525MHz

• Supports FSK,GFSK,MSK,GMSK,LoRa™ and OOK modulation modes

• Reception sensitivity: as low as -140 dBm

• Programmable bit rate up to 300Kbps

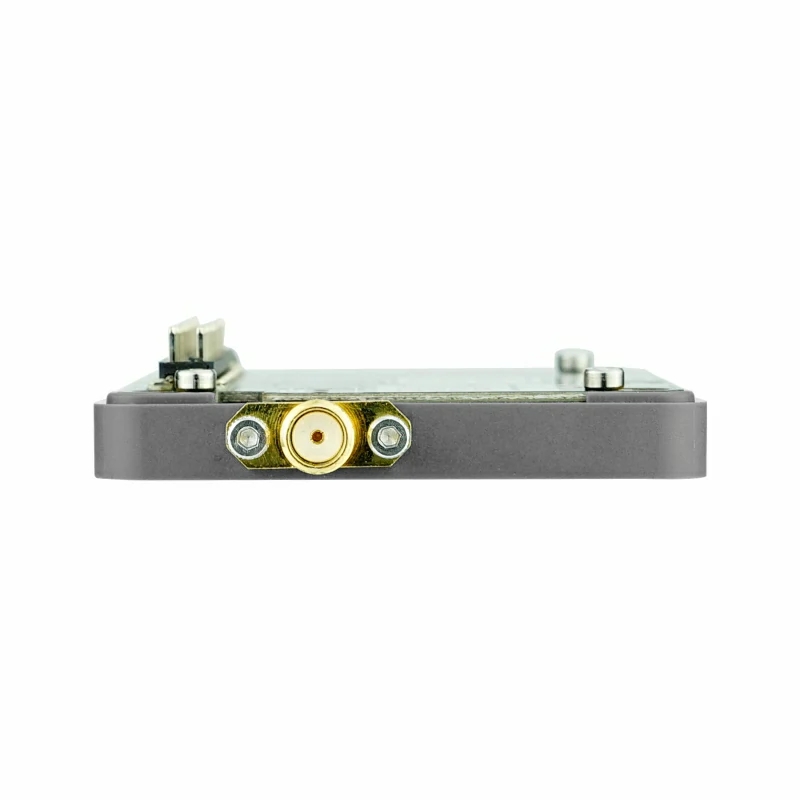

• External antenna interface

• Built-in dip switch toggle pin

• Development platform: Arduino, Micropython, UIFlow(Blockly)

Applications

• Remote Control

• Intelligent city

• Home and industrial automation

• Internet of Things (IoT) devices

Specification

Resources	Parameters
Spectral range	410MHz~525MHz
Communication interface	SPI
Programmable bit rate	Up to 300kbps
Antenna	Glue stick antenna @2.5dBi total length 110mm SMA inner needle
Operating temperature	0-40°C
Product Size	54*54*13.1mm
Package Size	92*63*25mm
Product Weight	16.1g
Package Weight	44.6g

Related Link

• Ra-02_CH

• Ra-02_EN

• SX127X

Schematic

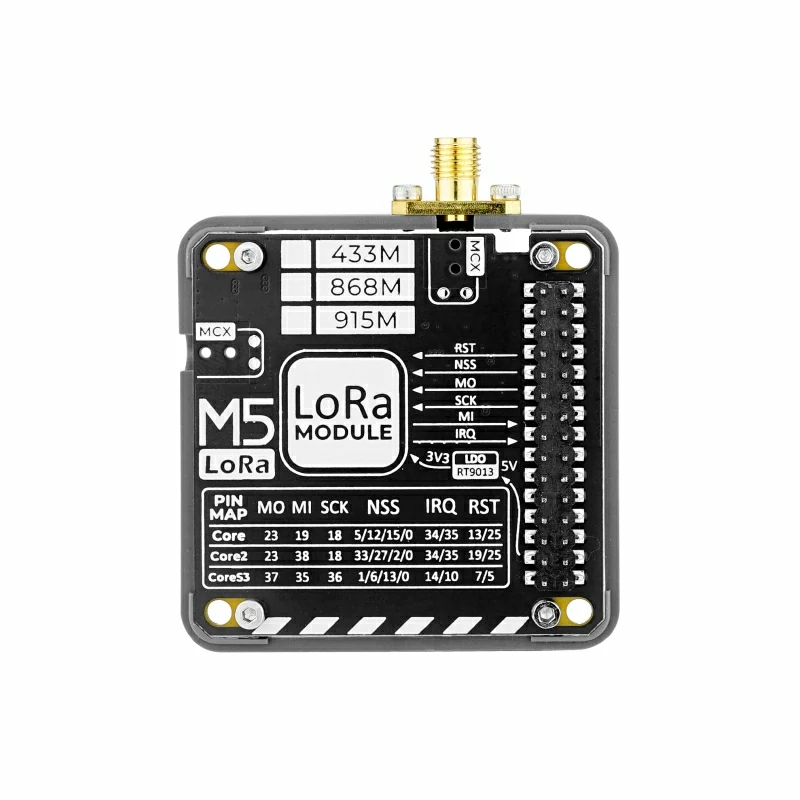

PinMap

Module Size

Examples

Arduino

• LoRa433_V1.1 Module Arduino Library

• LoRa433_V1.1 Module Arduino Demo(LoRaSender)

• LoRa433_V1.1 Module Arduino Demo(LoRaReceiver)

• LoRa433_V1.1 Module Arduino Demo(LoRaSetSpread)

• LoRa433_V1.1 Module Arduino Demo(LoRaDuplex)

UIFlow

UIFlow1.0 Module lora433 DocsUIFlow1.0 Module lora433 DocsHow to use Module lora433 on the UIFlow 1.0 graphical programming platform and related API instructions.

Version Change

Listing Date	Changed	Note
/	Product Released LoRa433(SKU:M005)	/
2024.05.17	LoRa868_V1.1(SKU:M005_V11)	Compared with the previous version, the dip switch is added, which can switch different communication pins, suitable for M5Core\M5Core2\M5CoreS3 generation host, and can also be used for multiple stacks

FAQ

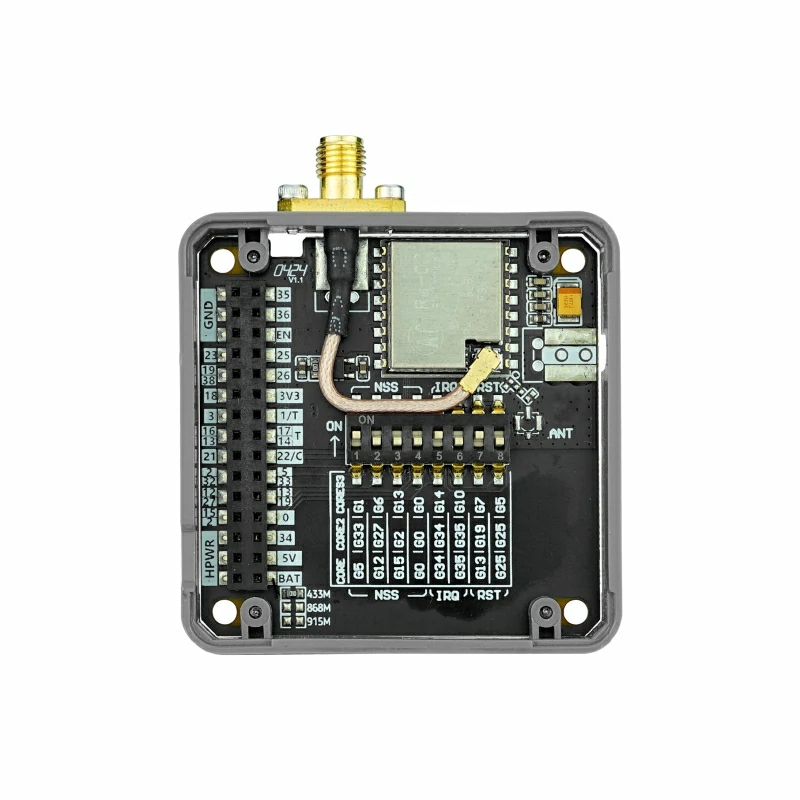

Use LoRa Module 433/868 V1.1 DIP switch to change IO to compatible with different controllers.

When the LoRa Module 433/868 V1.1 stack with different controllers, the SPI pins and RST, IRQ, and NSS are different, if some IO used another module or sensor, you could through the DIP switch to change the LoRa Module IO connection, you need to modify the pins define in the program: about the DIP switch and pins definition, you could refer to the documentation: https://docs.m5stack.com/en/module/Module-LoRa868_V1.1
