M5Stack Tab5 IoT Development Kit (ESP32-P4)

---

Product Link

M5Stack Tab5 IoT Development Kit (ESP32-P4)OpenELAB Technology Ltd.

Description

Tab5 is a highly extensible, portable smart IoT terminal development device designed for developers, integrating a dual-chip architecture and abundant hardware resources. Its main controller adopts the RISC‑V–based ESP32‑P4 SoC, equipped with 16 MB Flash and 32 MB PSRAM; the wireless module uses the ESP32‑C6‑MINI‑1U, supporting Wi‑Fi 6. Its antenna system can freely switch between the built-in 3D antenna and the external MMCX antenna interface, flexibly adapting to different deployment environments to ensure data throughput and low-latency control.

In terms of vision and interaction, Tab5 features a 5″ 1280×720 IPS TFT display via a MIPI‑DSI interface, with touch handled by the GT911 multi-point touch controller (I²C) for a smooth and responsive touch experience; it also includes an SC2356 2 MP camera (1600×1200) via a MIPI‑CSI interface, capable of high-definition video recording, image processing, and edge AI applications (e.g., face recognition, object tracking).

For peripheral interfaces, Tab5 offers USB‑A (Host) and USB‑C (USB 2.0 OTG) ports for connecting traditional peripherals like a mouse or keyboard; industrial scenarios can use RS‑485 (SIT3088 + DIP switch–selectable 120 Ω termination) bus communication. Grove, M5BUS, GPIO_EXT header, and Micro SD card slot, as well as reserved STAMP pads (supporting Cat.M, NB‑IoT, LoRaWAN, etc.), allow flexible expansion with various sensors and communication modules. It also includes Reset/Boot buttons for quick reset and entering firmware download mode.

In audio/video, Tab5 uses the ES8388 audio codec, paired with the ES7210 AEC echo-cancellation front end, a dual-microphone array, a 3.5 mm headphone jack, and a speaker for high-fidelity recording/playback and accurate voice recognition. The built-in BMI270 6-axis sensor (accelerometer + gyroscope, with interrupt wakeup) can trigger the main controller in motion-tracking and posture-detection scenarios, improving responsiveness in low-power conditions.

For time and power management, Tab5 integrates the RX8130CE real-time clock (with timed interrupt wakeup), supports a removable NP‑F550 lithium battery, and includes MP4560 boost/buck management, IP2326 charge/discharge control, and INA226 real-time monitoring circuitry—ensuring stable operation without external power.

Structurally, Tab5 features a standard 1/4″‑20 tripod mount on the side, allowing direct attachment to tripods or other mounts for easy shooting and deployment.

Tab5 is suitable for smart home control, remote monitoring, industrial automation, IoT prototyping, education, and research—providing developers and enterprises a comprehensive, easily expandable, high-performance development platform.

Features

• ESP32‑P4 dual-core main controller

• ESP32‑C6 wireless module

• Wi‑Fi 6

• Built-in 3D antenna & MMCX external antenna port

• 5″ 720P MIPI‑DSI display

• GT911 multi-point touch

• SC2356 2 MP camera

• USB‑A Host + USB‑C OTG

• RS‑485 industrial interface

• Grove & M5BUS expansion

• Micro SD card slot

• STAMP expansion

• ES8388 audio codec

• ES7210 AEC dual microphone

• 1 W speaker + 3.5 mm headphone jack

• BMI270 6-axis sensor

• RX8130CE real-time clock

• Reset/Boot & Power buttons

• NP‑F550 removable battery

• Standard 1/4″‑20 tripod mount

• Development platform:

  • ESP-IDF

Specifications

Specification	Parameters
Main Controller SoC	ESP32-P4NRW32 (RISC-V 32-bit HP dual-core 400 MHz + RISC-V 32-bit LP single-core 40 MHz)
Wireless Module SoC	ESP32‑C6‑MINI‑1U (supports Wi‑Fi 6 @ 2.4 GHz / Thread / ZigBee)
Antenna	Built‑in 3D antenna & 2 x MMCX external antenna port
Flash	16 MB
PSRAM	32 MB
Display	5 Inch IPS TFT (1280×720)
Touch	GT911 multi-point touch controller (I²C)
Camera	SC2356 @ 2 MP (1600×1200), via MIPI‑CSI
Audio Chip	ES8388 codec; ES7210 AEC front end
Microphone	Dual-microphone system (AEC echo cancellation)
Speaker	1 W@8 Ω NS4150B
Headphone Jack	3.5 mm
USB Ports	USB‑A (Host), USB‑C (USB 2.0 OTG)
RS485 Port	SIT3088 (120 Ω selectable termination) Supply: 6 ~ 24 V
Expansion Interfaces	1 × Grove, 1 × M5BUS, GPIO_EXT header
Storage Expansion	Micro SD card slot
Stamp Expansion Pads	Supports Stamp Cat.M / NB‑IoT / LoRaWAN modules
Motion Sensor	BMI270 6-axis (accelerometer + gyroscope, interrupt wakeup support)
RTC	RX8130CE real-time clock (timed interrupt wakeup support)
Reset/Boot Buttons	1× button for power on/off and download mode entry
Charge Management	IP2326 charge management chip
Power Monitoring	INA226 (bus current/voltage monitoring)
Battery	NP‑F550 removable lithium battery, 7.4 V @ 2000 mAh (14.8 Wh)
Battery life	Under standard usage conditions (50% screen brightness, continuous Wi‑Fi connection, background tasks running, etc.), the Tab5’s built-in battery discharges from full charge (8.23 V) to the shutdown threshold (6.0 V), providing approximately 6 hours of continuous operation.
Operating Temperature	0 ~ 40 °C
Product Size	Tab5: 128.0 × 80.0 × 12.0 mm Tab5 Kit: 128.0 × 80.0 × 26.7 mm
Product Weight	Tab5: 124.5 g Tab5 Kit: 277.4 g Battery: 97.9 g
Package Size	Tab5: 148.0 × 103.0 × 21 mm Tab5 Kit: 191.0 × 103.0 × 25.0 mm
Gross Weight	Tab5: 162.5 g Tab5 Kit: 277.4 g

Power Consideration:

Before disconnecting power or swapping the battery, shut down the Tab5. If you remove power directly, wait 5 seconds before re-powering to avoid IMU initialization failures due to unstable voltage.

Download Mode:

With USB cable or battery connected, long‑press the Reset button (2 seconds) until the internal green LED rapidly blinks; release to enter download mode and await firmware flashing.

Battery Installation:

With device powered off, press and hold the red latch button on the board edge, align the metal contacts on the back of the battery module to the “BATTERY” slot, slide downward along the guide rails until flush, then release the red button to complete installation and power on.

Power On/Off:

When powered by USB cable or battery: to power on from off, single-click the power button; to power off from on, double-click the power button.

Schematics

• Tab5 Overall Design Block Diagram

• Tab5 Schematics PDF

PinMap

PI4IOE5V6408

ESP32-P4	G32	G31	CHIP_PU
PI4IOE5V6408	SCL	SDA	RST

CAM

ESP32‑P4	CAM
G32	CAM_SCL
G31	CAM_SDA
G36	CAM_MCLK
CSI_DATAP1 (dedicated)	CAM_D1P
CSI_DATAN1 (dedicated)	CAM_D1N
CSI_CLKP (dedicated)	CAM_CSI_CKP
CSI_CLKN (dedicated)	CAM_CSI_CKN
CSI_DATAP0 (dedicated)	CSI_DOP
CSI_DATAN0 (dedicated)	CSI_DON

PI4IOE5V6408	P6
CAM	CAM_RST

NS4150B

PI4IOE5V6408	P1
NS4150B	SPK_EN

ES8388

ESP32-P4	G30	G27	G26	G29	G32	G31
ES8388	MCLK	SCLK	DSDIN	LRCK	CCLK	CDATA

ES7210

ESP32-P4	G30	G27	G28	G29	G32	G31
ES7210	MCLK	SCLK	ASDOUT	LRCK	CCLK	CDATA

LCD

ESP32‑P4	ILI9881C
G22	LEDA
G23	TP_INT
G31	SDA
G32	SCL
DSI_CLKN (dedicated)	DSI_CK_N
DSI_CLKP (dedicated)	DSI_CK_P
DSI_DATAN1 (dedicated)	DSI_D1_N
DSI_DATAP1 (dedicated)	DSI_D1_P
DSI_DATAN0 (dedicated)	DSI_D0_N
DSI_DATAP0 (dedicated)	DSI_D0_P

PI4IOE5V6408	P5	P4
ILI9881C	TP_RST	LCD_RST

BMI270 & RTC (RX8130CE) & INA226

ESP32-P4	G32	G31
BMI270	SCL	SDA
RX8130CE	SCL	SDA
INA226	SCL	SDA

• Interrupt Wakeup (PMS150G-U06 power management)

PMS150G-U06	PA6/CIN‑
BMI270	INT(E_TRG)
RX8130CE	INT(E_TRG)

ESP32-C6

ESP32-P4	G11	G10	G9	G8	G13	G12
ESP32-C6	SDIO2_D0	SDIO2_D1	SDIO2_D2	SDIO2_D3	SDIO2_CMD	SDIO2_CK

microSD

ESP32-P4	G39	G40	G41	G42	G43	G44
microSD SPI Mode	MISO			CS	SCK	MOSI
microSD SDIO Mode	DAT0	DAT1	DAT2	DAT3	CLK	CMD

RS485

ESP32-P4	G21	G20	G34
SIT3088	RX	TX	DIR

IP2326

PI4IOE5V6408	P7	P6
IP2326	CHG_EN	CHG_STAT

HY2.0-4P

HY2.0-4P	Black	Red	Yellow	White
PORT.A	GND	5V	G53	G54

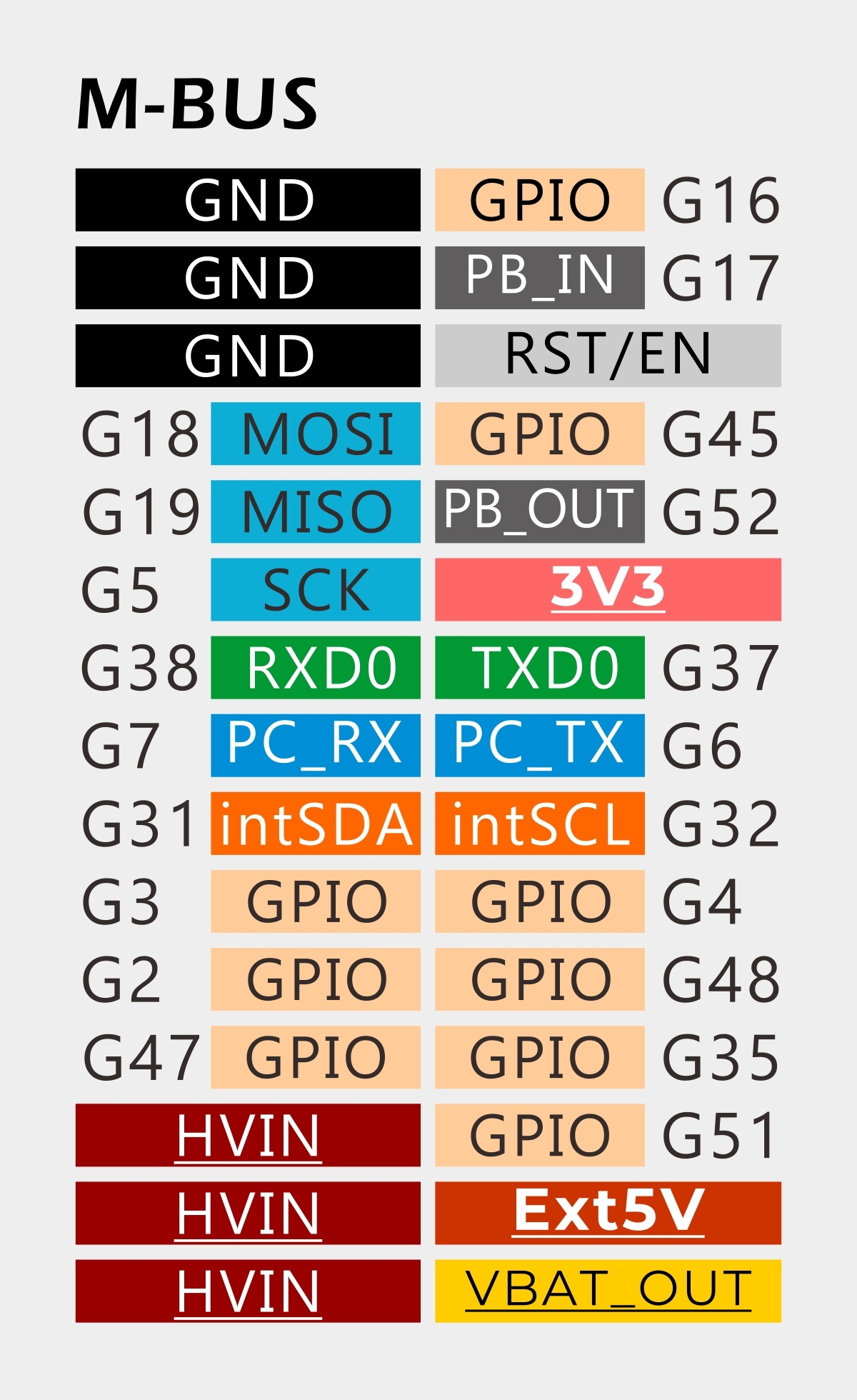

MBUS

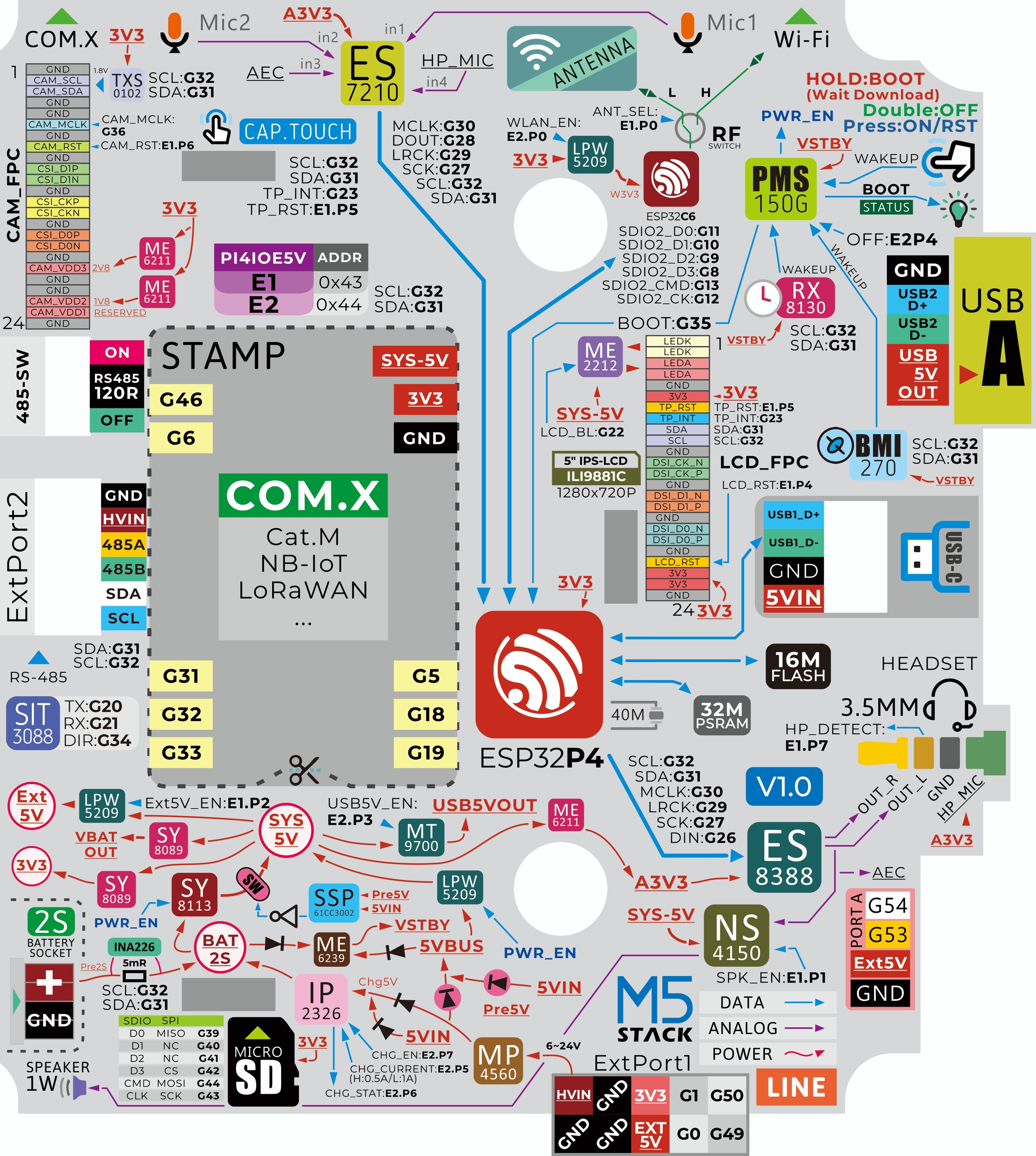

Tab5 Board PinMap Overview

Model Size

Datasheets

• ESP32-P4

• BMI270

• ESP32-C6

• NS4150B

• ES7210

• ES8388

• INA226

• IP2326

• NP‑F550 Battery Report

Softwares

Quick Start

• Tab5 Restore Factory Firmware

Arduino

• M5Unified

• M5GFX

PlatformIO

[env:esp32p4_pioarduino]
platform = https://github.com/pioarduino/platform-espressif32.git#54.03.20
upload_speed = 1500000
monitor_speed = 115200
build_type = debug
framework = arduino
board = esp32-p4-evboard
board_build.mcu = esp32p4
board_build.flash_mode = qio

build_flags =
    -DBOARD_HAS_PSRAM
    -DCORE_DEBUG_LEVEL=5
    -DARDUINO_USB_CDC_ON_BOOT=1
    -DARDUINO_USB_MODE=1
lib_deps =
    https://github.com/M5Stack/M5Unified.git
    https://github.com/M5Stack/M5GFX.git

ESP-IDF

• Tab5 User Demo

• Tab5 User Demo Compilation

Easyloader

Easyloader	Download Link	Notes
Tab5 User Demo	download	/
