M5Stack Finger Print Sensor Unit
Product Link
Description

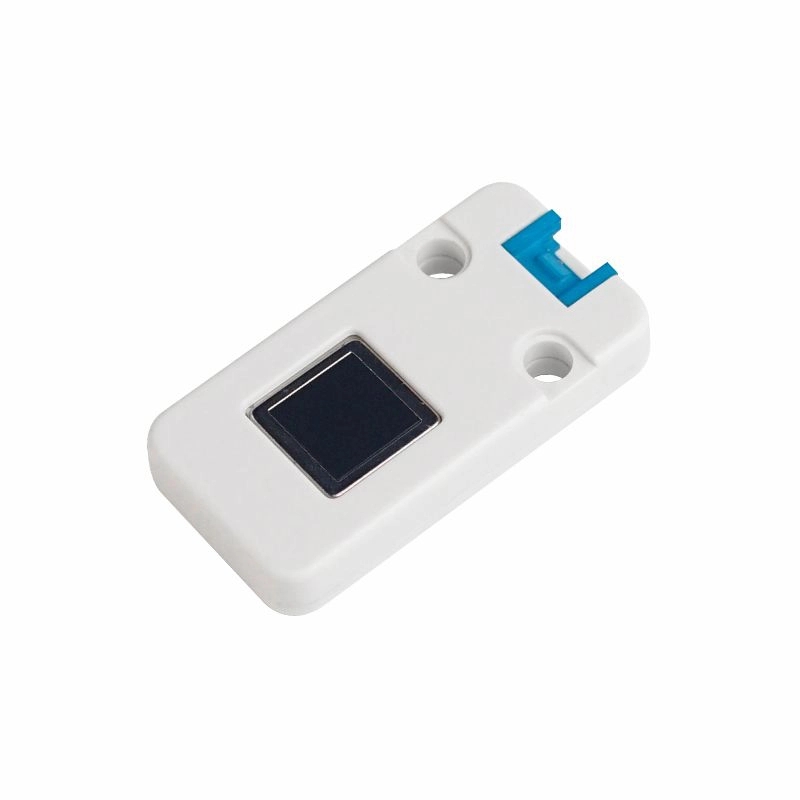

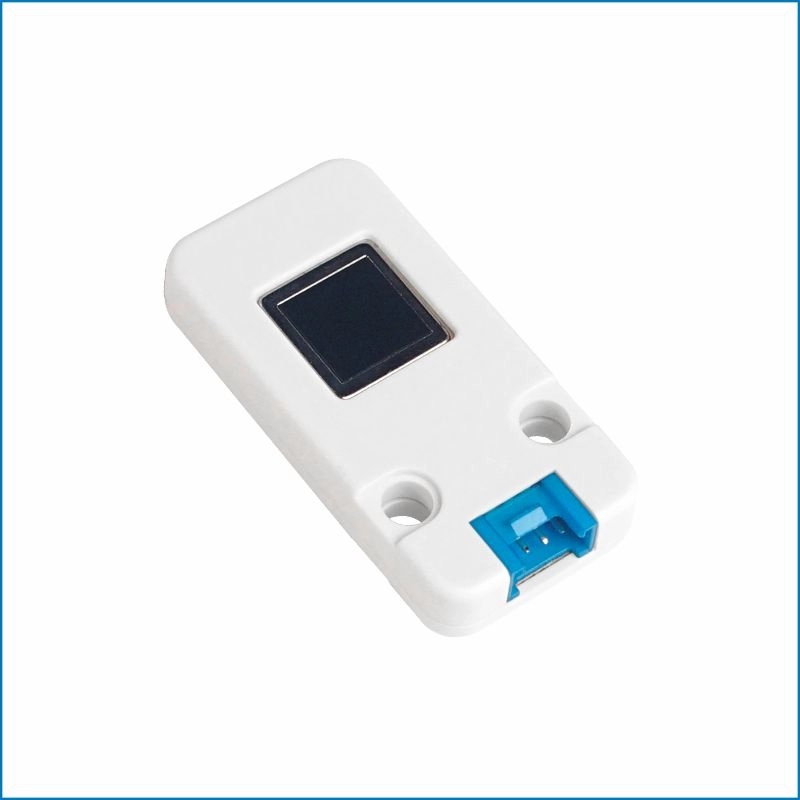

FINGER Unit is a fingerprint sensor based on the FPC1020A chipset.
This all-in-one fingerprint sensor makes fingerprint adding, verification and managing super simple.
Operated by the UART protocol, Compact size and ultra-low power consumption makes it very attractive to use around M5Stack series product. it performs fast fingerprint matching with highest security level and optimal user convenience. You can program to set the fingerprint recognition comparison level and different security level . if you ever consider secure your project with biometrics, don't forget to include this M5unit FINGER.
This unit communicate with M5Core by UART protocol connected via PORTC
UART settings:
Baudrate(default: 19200bps)
Start bits(1 bit)
Stop bits(1 bit)
Parity(no)
Features
Use capacitive area array semiconductor fingerprint sensor
Each pixel of the sensor has a pixel quality of 256 gray levels
1: N recognition and 1: 1 verification function
Support finger 360 rotation recognition
Fingerprint comparison and search function
Applications
Fingerprint Attendance Machine
Fingerprint Locker
Specification
| Resources | Parameter |
|---|---|
Fingerprint capacity | 150 |
Security level | 0-9, default 5 |
Output format | User name, image, feature value |
Characteristic value size | 193Byte |
Communication method | UART (9600-115200) |
Working temperature | -10 °C-60 °C |
Relative humidity | 20% -80% |
Net weight | 7g |
Gross weight | 20g |

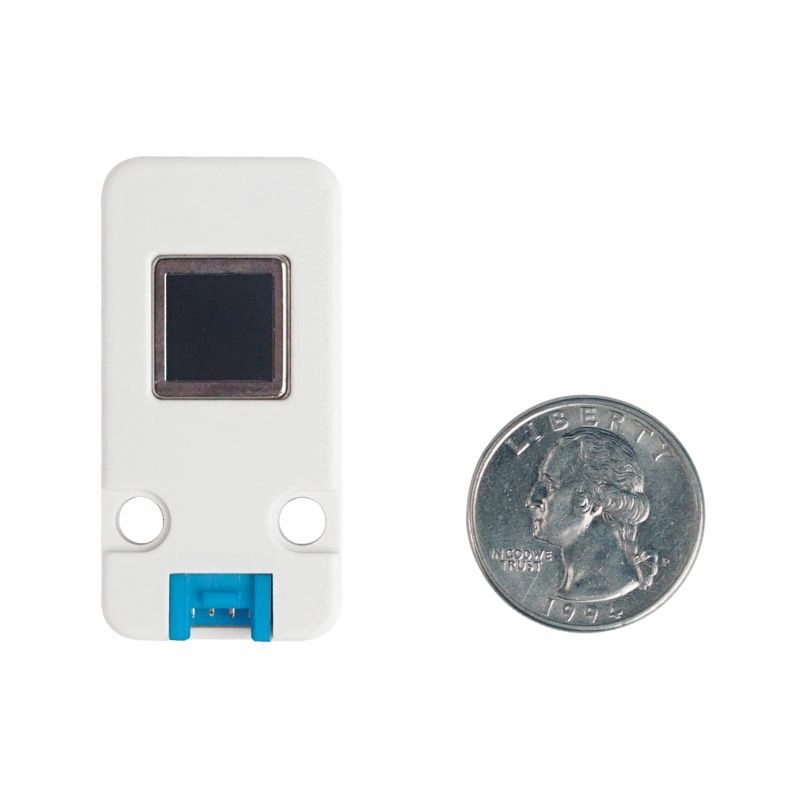

Product Size | 48*24*8mm |
Package Size | 136*93*12mm |
EasyLoader
EasyLoader is a concise and fast program writer, which has a built-in case program related to the product. It can be burned to the main control by simple steps to perform a series of function verification.
Download Windows Version Easyloader Download MacOS Version Easyloader
Description: FINGER UNIT use case: Press the left button to enter the fingerprint input mode. Press the middle button to enter the fingerprint identification mode.
Pinout
| M5Core(GROVE C) | U2RXD | U2TXD | 5V | GND |
|---|---|---|---|---|
FINGER Unit | TXD | RXD | 5V | GND |

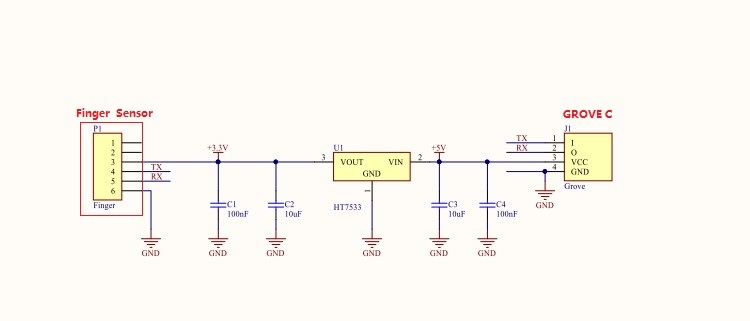

Schematic
Related Link
Protocol FINGER series communication protocol
Datasheet FPC1020A
Learn
M5 Mini HackathonM5 Mini HackathonA inner maker competition of M5Stack.
M5Stack X Micro:bitM5Stack X Micro:bitM5Stack and Micro:bit can control each other, thanks to the M5:BitM5Stack Based Anti-COVID Security Gate (Proof of Concept)M5Stack Based Anti-COVID Security Gate (Proof of Concept)Gate/door fingerprint security system with body temperature checks for the anti-COVID measure.
Example
Arduino

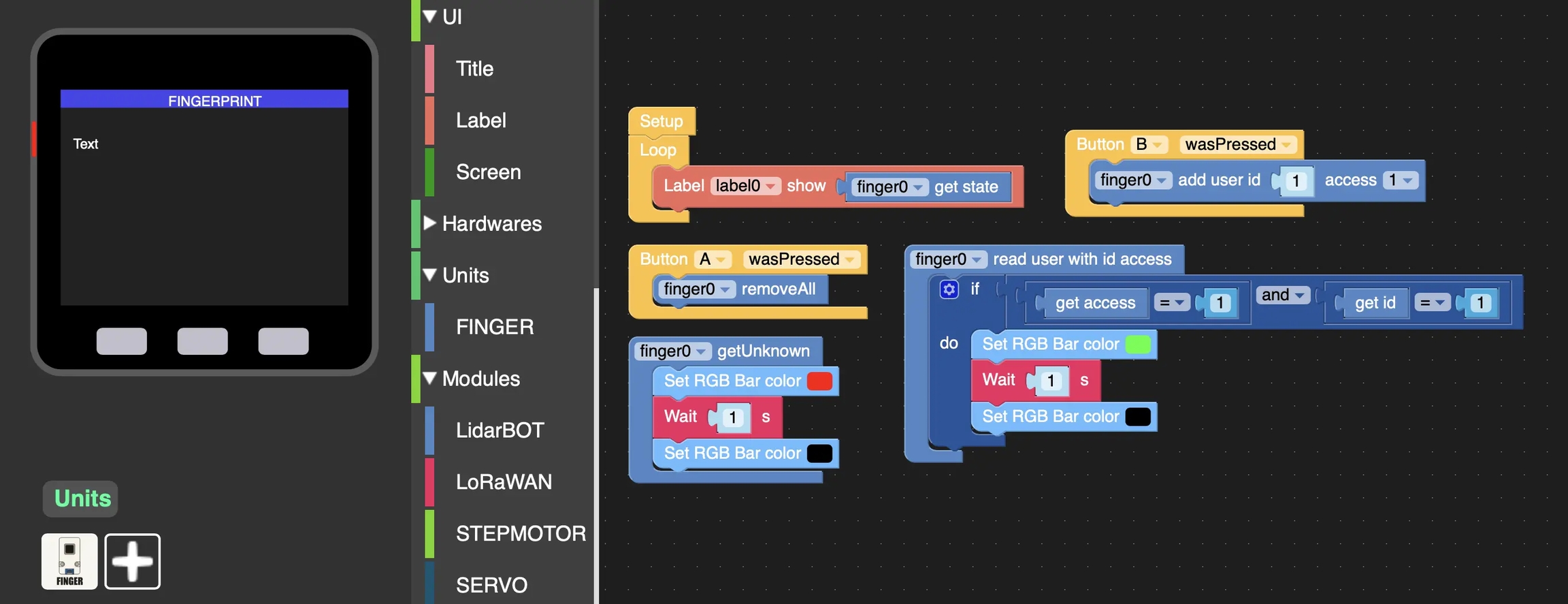

UIFlow
Feature Introduction
Identify fingerprint information
get state Read sensor status
get access Return access
get id Return ID
removeAll Remove all fingerprint information
remove id Remove fingerprint ID
add user id access Add ID and access rights
read user with id access The id and permission match do the following
getUnknown Unknown id and permission to perform the following operations
Usage
