Seeed Studio XIAO ESP32-C3 WIFI Dev Board

---

Product Link

Seeed Studio XIAO ESP32-C3 WIFI Dev Boardhttps://x.com/openelabio

Introduction

Seeed Studio XIAO ESP32C3 is an IoT mini development board based on the Espressif ESP32-C3 WiFi/Bluetooth dual-mode chip. ESP32-C3 is a 32-bit RISC-V CPU, which includes an FPU (Floating Point Unit) for 32-bit single-precision arithmetic with powerful computing power. It has excellent radio frequency performance, supporting IEEE 802.11 b/g/n WiFi, and Bluetooth 5 (LE) protocols. This board comes included with an external antenna to increase the signal strength for your wireless applications. It also has a small and exquisite form-factor combined with a single-sided surface-mountable design. It is equipped with rich interfaces and has 11 digital I/O that can be used as PWM pins and 3 analog I/O that can be used as ADC pins. It supports four serial interfaces such as UART, I2C and SPI. There is also a small reset button and a bootloader mode button on the board. XIAO ESP32C3 is fully compatible with the Grove Shield for Seeeduino XIAO and Seeeduino XIAO Expansion board except for the Seeeduino XIAO Expansion board, the SWD spring contacts on the board will not be compatible.

With regard to the features highlighted above, XIAO ESP32C3 is positioned as a high-performance, low-power, cost-effective IoT mini development board, suitable for low-power IoT applications and wireless wearable applications.

Features

• Powerful CPU: ESP32-C3, 32­bit RISC­-V single­core processor that operates at up to 160 MHz

• Complete Wi­Fi subsystem: Complies with IEEE 802.11b/g/n protocol and supports Station mode, SoftAP mode, SoftAP + Station mode, and promiscuous mode

• Bluetooth LE subsystem: Supports features of Bluetooth 5 and Bluetooth mesh

• Ultra-Low Power: Deep sleep power consumption is about 43μA

• Better RF performance: External RF antenna included

• Battery charging chip: Supports lithium battery charge and discharge management

• Rich on-chip resources: 400KB of SRAM, and 4MB of on-board flash memory

• Ultra small size: As small as a thumb(21x17.8mm) XIAO series classic form-factor for wearable devices and small projects

• Reliable security features: Cryptographic hardware accelerators that support AES-128/256, Hash, RSA, HMAC, digital signature and secure boot

• Rich interfaces: 1xI2C, 1xSPI, 2xUART, 11xGPIO(PWM), 4xADC, 1xJTAG bonding pad interface

• Single-sided components, surface mounting design

Specifications

Item	Seeed Studio XIAO ESP32C3	Seeeduino XIAO	Seeed XIAO RP2040	Seeed XIAO nRF52840	Seeed XIAO nRF52840 Sense
Processor	ESP32-C3 32-bit RISC-V @160MHz	SAMD21 M0+@48MHz	RP2040 Dual-core M0+@133Mhz	nRF52840 M4F@64MHz	nRF52840 M4F@64MHz
Wireless Connectivity	WiFi and Bluetooth 5 (LE)	N/A	N/A	Bluetooth 5.0/BLE/NFC	Bluetooth 5.0/BLE/NFC
Memory	400KB SRAM, 4MB onboard Flash	32KB SRAM 256KB FLASH	264KB SRAM 2MB onboard Flash	256KB RAM, 1MB Flash 2MB onboard Flash	256KB RAM,1MB Flash 2MB onboard Flash
Built-in Sensors	N/A	N/A	N/A	N/A	6 DOF IMU (LSM6DS3TR-C), PDM Microphone
Interfaces	I2C/UART/SPI	I2C/UART/SPI	I2C/UART/SPI	I2C/UART/SPI	I2C/UART/SPI
PWM/Analog Pins	11/4	11/11	11/4	11/6	11/6
Onboard Buttons	Reset/ Boot Button	N/A	Reset/ Boot Button	Reset Button	Reset Button
Onboard LEDs	Charge LED	N/A	Full-color RGB/ 3-in-one LED	3-in-one LED/ Charge LED	3-in-one LED/ Charge LED
Battery Charge Chip	Built-in	N/A	N/A	BQ25101	BQ25101
Programming Languages	Arduino/ MicroPython	Arduino/ CircuitPython	Arduino/ MicroPython/ CircuitPython

Pinout

Getting started​

First, we are going to connect XIAO ESP32C3 to the computer, connect an LED to the board and upload a simple code from Arduino IDE to check whether the board is functioning well by blinking the connected LED.

Software setup​

• Step 1. Download and Install the latest version of Arduino IDE according to your operating system

• Step 2. Launch the Arduino application

• Step 3. Add ESP32 board package to your Arduino IDE

Navigate to File > Preferences, and fill "Additional Boards Manager URLs" with the url below: https://raw.githubusercontent.com/espressif/arduino-esp32/gh-pages/package_esp32_index.json

Navigate to Tools > Board > Boards Manager..., type the keyword "esp32" in the search box, select the latest version of esp32, and install it.

• Step 4. Select your board and port

Board

Navigate to Tools > Board > ESP32 Arduino and select "XIAO_ESP32C3". The list of board is a little long and you need to roll to the buttom to reach it.

Port

Navigate to Tools > Port and select the serial port name of the connected XIAO ESP32C3. This is likely to be COM3 or higher (COM1 and COM2 are usually reserved for hardware serial ports).

Hardware setup​

You need to prepare the following:

• 1 x Seeed Studio XIAO ESP32C3

• 1 x Computer

• 1 x USB Type-C cable

tip

Some USB cables can only supply power and cannot transfer data. If you don't have a USB cable or don't know if your USB cable can transmit data, you can check Seeed USB Type-C support USB 3.1.

• Step 1. Connect XIAO ESP32C3 to your computer via a USB Type-C cable.

• Step 2. Connect an LED to D10 pin as follows

Note: Make sure to connect a resistor (about 150Ω) in series to limit the current through the LED and to prevent excess current that can burn out the LED

Blink the LED​

• Step 1. Copy the below code to Arduino IDE

Make sure your D10 is connected to an LED as shown in the diagram above.

// define led according to pin diagram in article
const int led = D10; // there is no LED_BUILTIN available for the XIAO ESP32C3.

void setup() {
  // initialize digital pin led as an output
  pinMode(led, OUTPUT);
}

void loop() {
  digitalWrite(led, HIGH);   // turn the LED on
  delay(1000);               // wait for a second
  digitalWrite(led, LOW);    // turn the LED off
  delay(1000);               // wait for a second
}

• Step 2. Click the Upload button to upload the code to the board

Once uploaded, you will see the connected LED blinking with a 1-second delay between each blink. This means the connection is successful and now you can explore more projects with XIAO ESP32C3!

Battery Usage​

The XIAO ESP32C3 is capable of using a 3.7V lithium battery as the power supply input. You can refer to the following diagram for the wiring method.

pir

Instructions on the use of batteries:

1. Please use qualified batteries that meet the specifications.

2. XIAO can be connected to your computer device via data cable while using the battery, rest assured that XIAO has a built-in circuit protection chip, which is safe.

3. The XIAO ESP32C3 will not have any LED on when it is battery powered (unless you have written a specific program), please do not judge whether the XIAO ESP32C3 is working or not by the condition of the LED, please judge it reasonably by your program.

4. Sorry, we currently have no way to help you check the remaining battery level through software (because there are no more chip pins available), you need to charge the battery regularly or use a multimeter to check the battery level.

Check the battery voltage​

Due to the limitation of the number of pins in the ESP32C3, engineers had no extra pins to allocate to the battery for voltage measurement in order to ensure that the XIAO ESP32C3 has the same number of GPIOs as the other XIAO series available.

But if you prefer to use a separate pin for battery voltage measurement, you can refer to the genius operation of msfujino. We would also like to give a special thanks to msfujino for all the experience and efforts shared for the XIAO ESP32C3.

The basic operating idea is: The battery voltage was divided by 1/2 with 200k and connected to the A0 port so that the voltage could be monitored.

pir

The datasheet says nominally 2500mV full scale AD conversion, but there is a large variation from chip to chip, actually ±10%. My chip was 2700mV full scale.

Fortunately, the calibrated correction value for each chip is written in the fuse area, and by using the function analogReadMilliVolts(), I can read the corrected voltage value without doing anything special.

The result of AD conversion and the voltage measured by the multimeter agree well with each other with an error of about 5 mV, which is not a problem in practical use.

In addition, during communication in particular, spike-like errors occurred, which had to be averaged out 16 times to remove them.

The following is the procedure to test the battery voltage.

void setup() {
  Serial.begin(115200);
  pinMode(A0, INPUT);         // ADC
}

void loop() {
  uint32_t Vbatt = 0;
  for(int i = 0; i < 16; i++) {
    Vbatt = Vbatt + analogReadMilliVolts(A0); // ADC with correction
  }
  float Vbattf = 2 * Vbatt / 16 / 1000.0;     // attenuation ratio 1/2, mV --> V
  Serial.println(Vbattf, 3);
  delay(1000);
}

Deep sleep mode and wake-up​

The XIAO ESP32C3 is designed to support deep sleep mode and wake-up functions. For the use of these two functions, we provide the following usage examples.

#define BUTTON_PIN_BITMASK 0x200000000 // 2^33 in hex

RTC_DATA_ATTR int bootCount = 0;

/*
Method to print the reason by which ESP32
has been awaken from sleep
*/
void print_wakeup_reason(){
  esp_sleep_wakeup_cause_t wakeup_reason;

  wakeup_reason = esp_sleep_get_wakeup_cause();

  switch(wakeup_reason)
  {
    case ESP_SLEEP_WAKEUP_EXT0 : Serial.println("Wakeup caused by external signal using RTC_IO"); break;
    case ESP_SLEEP_WAKEUP_EXT1 : Serial.println("Wakeup caused by external signal using RTC_CNTL"); break;
    case ESP_SLEEP_WAKEUP_TIMER : Serial.println("Wakeup caused by timer"); break;
    case ESP_SLEEP_WAKEUP_TOUCHPAD : Serial.println("Wakeup caused by touchpad"); break;
    case ESP_SLEEP_WAKEUP_ULP : Serial.println("Wakeup caused by ULP program"); break;
    default : Serial.printf("Wakeup was not caused by deep sleep: %d\n",wakeup_reason); break;
  }
}

void setup(){
  Serial.begin(115200);
  delay(1000); //Take some time to open up the Serial Monitor

  //Increment boot number and print it every reboot
  ++bootCount;
  Serial.println("Boot number: " + String(bootCount));

  //Print the wakeup reason for ESP32
  print_wakeup_reason();

  esp_deep_sleep_enable_gpio_wakeup(BIT(D1), ESP_GPIO_WAKEUP_GPIO_LOW);

  //Go to sleep now
  Serial.println("Going to sleep now");
  esp_deep_sleep_start();
  Serial.println("This will never be printed");
}

void loop(){
  //This is not going to be called
}

If you are quick enough to turn on the serial monitor before the XIAO goes into deep sleep, then you can see the message output as shown below. This means that the XIAO is now "asleep".

FAQ​

My Arduino IDE is stuck when uploading code to the board

You can first try to reset the board by clicking the RESET BUTTON once while the board is connected to your PC. If that does not work, hold the BOOT BUTTON, connect the board to your PC while holding the BOOT button, and then release it to enter bootloader mode.

My board is not showing up as a serial device on Arduino IDE​

Follow the same answer as for Q1 above.

I want to reflash the bootloader with factory firmware​

You can simply connect the board to a PC via USB Type-C and reflash the bootloader with factory firmware by using ESP RF Test Tool.

• Step 1. Hold on the BOOT BUTTON and connect XIAO ESP32C3 to the PC to enter bootloader mode

• Step 2. After it is connected, release the BOOT BUTTON

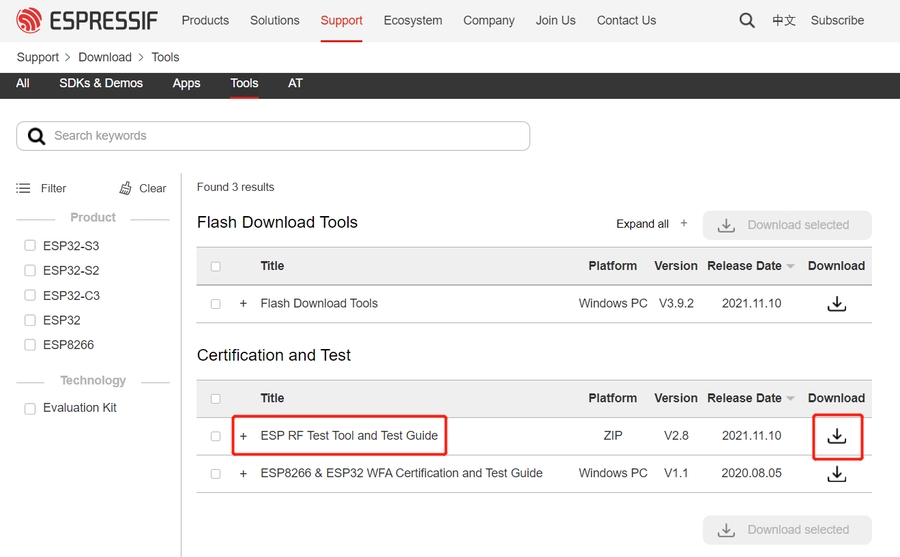

• Step 3. Visit this page and download ESP RF Test Tool and Test Guide

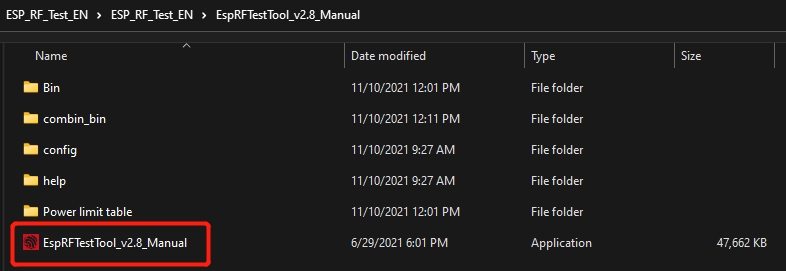

• Step 4. Extract the .zip, navigate to ESP_RF_Test_EN\ESP_RF_Test_EN\EspRFTestTool_v2.8_Manual and open EspRFTestTool_v2.8_Manual.exe

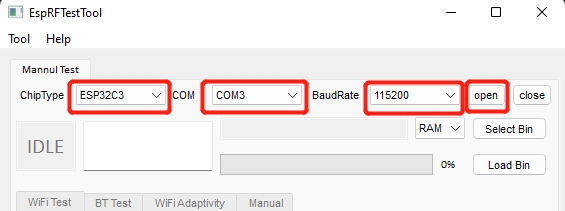

• Step 5. Select ESP32C3 as the ChipType, your COM port, 115200 as the BaudRate and click open

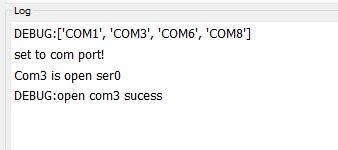

You will see the following output

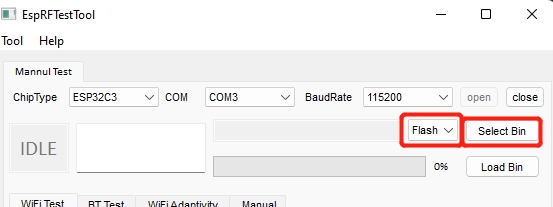

• Step 6. Select Flash and click Select Bin

• Step 7. Download the factory firmware of XIAO ESP32C3 and select it.

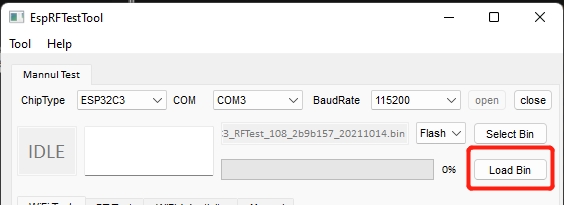

• Step 8. Finally click Load Bin

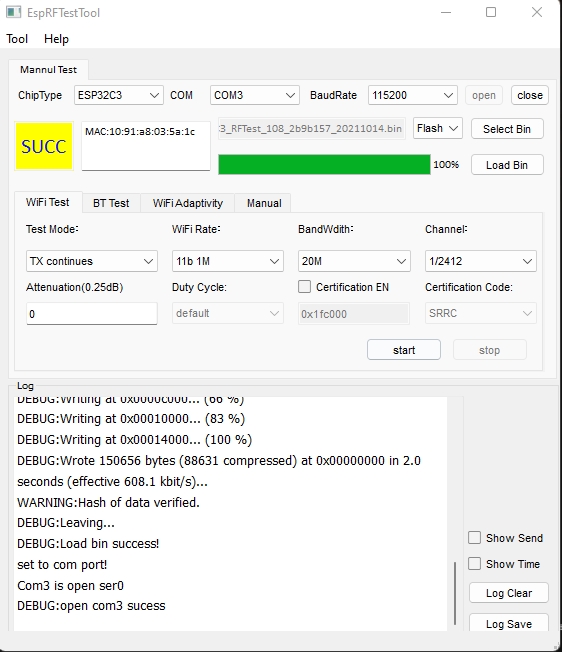

You will see the following output when flashing is successful
